Moldtech Vertical Precast Concrete Single and Double Staircase Molds

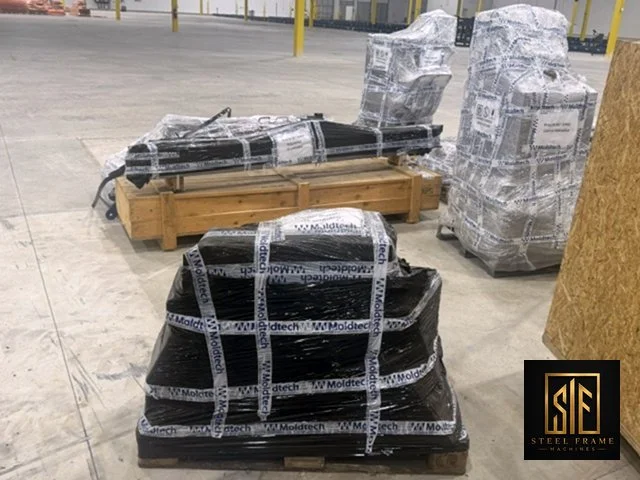

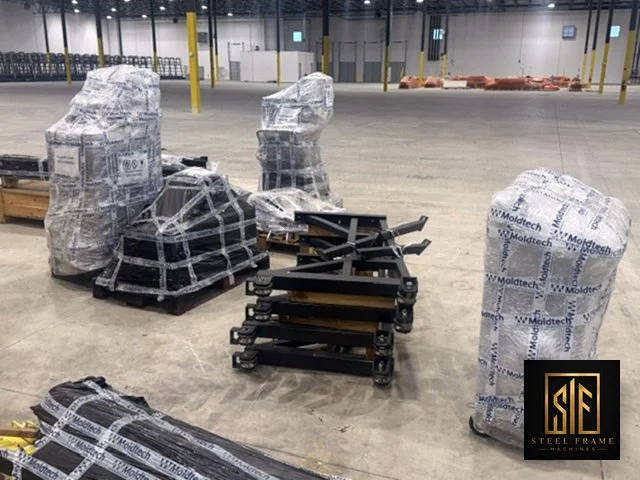

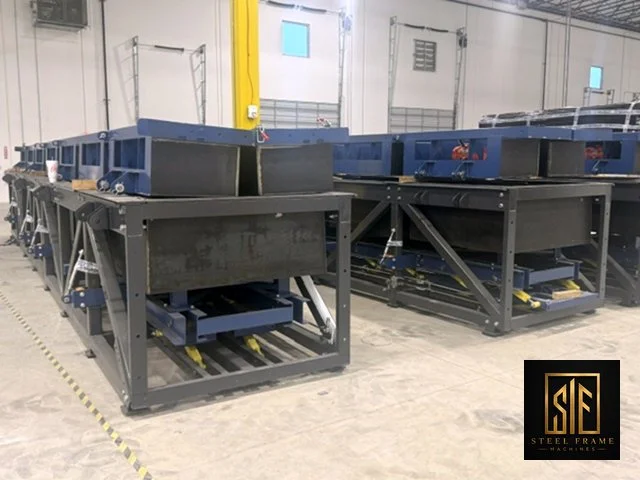

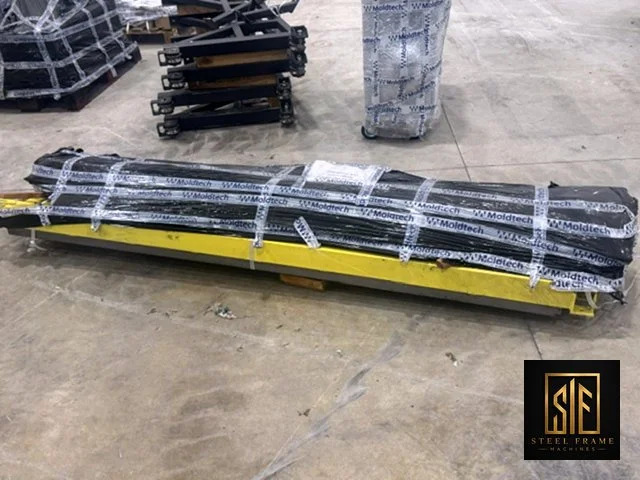

This lot includes two Moldtech vertical molds for producing precast concrete staircases: a single staircase mold and a double staircase battery mold. Both are fixed vertical molds with hydraulic opening, electric vibration systems, and 480V / 60Hz electrical components. Many components are still in Moldtech factory packaging.

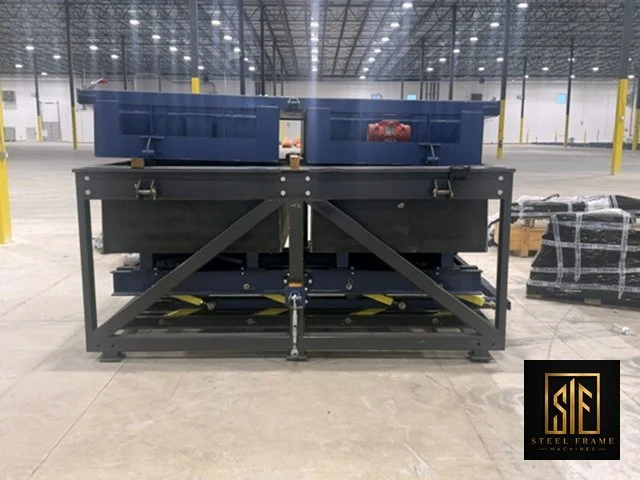

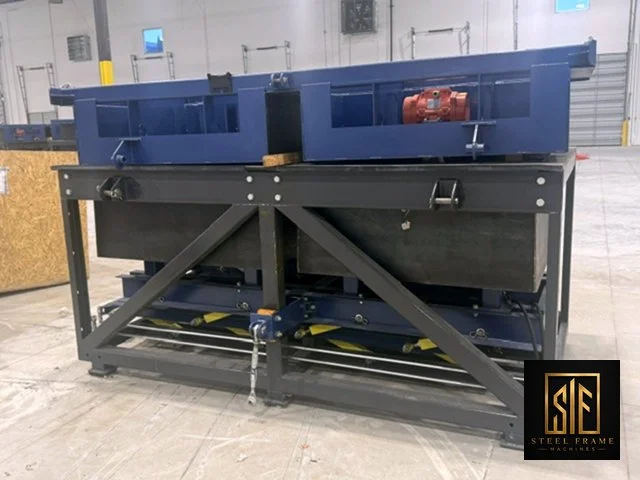

The single staircase mold casts one stair per cycle. Per the manufacturer specification, it produces a 16-step stair with one landing, a 7 1/2" riser, and a maximum stair width of 3' 6". It is equipped with four electric vibrators, and its overall footprint is 20' 7 3/4" × 7' 6 1/2" × 5' 7".

The double staircase battery mold casts two stairs per cycle. Each stair has nine steps and two landings, with a 7 1/2" riser, 7 1/2" landing thickness, and a maximum stair width of 3' 6". It is equipped with six electric vibrators and includes a working platform. Its overall footprint is 11' 10 3/4" × 13' 3 1/2" × 5' 7 1/4".

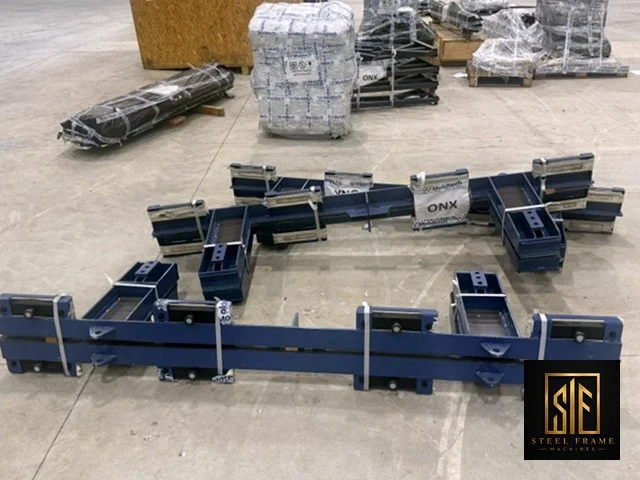

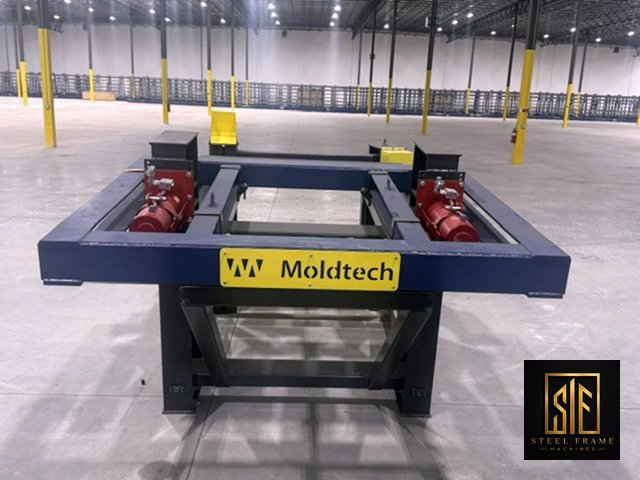

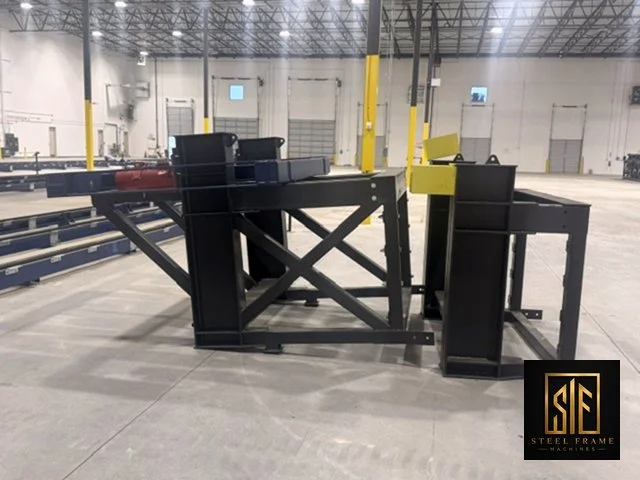

The manufacturer specifies both molds as UL certified, painted, and suitable for outdoor installation. Each mold sits on rail-mounted base frames with anchored support points. Moldtech general arrangement drawings, including foundation load reactions, are available.
