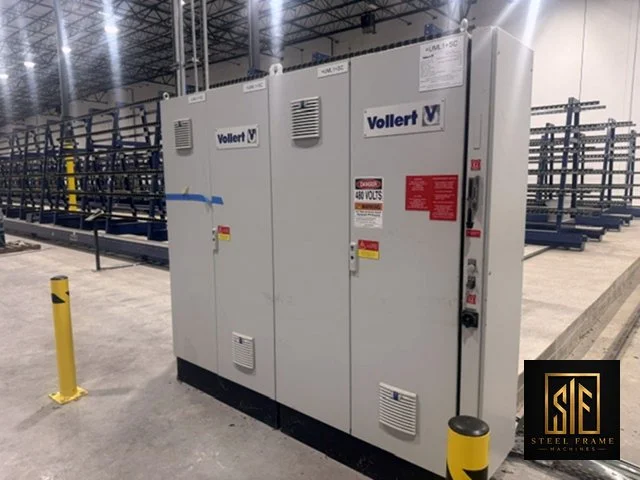

This 2023 light gauge steel (LGS) panel handling system has two subsystems: an A-frame conveyor line and a three-strand chain conveyor line. Cross shifters, plant controls, and a set of spare parts for each subsystem are included. The control cabinets are branded Vollert.

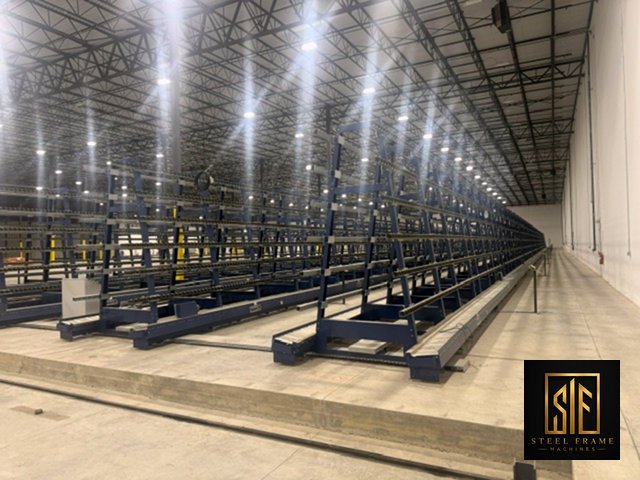

The A-frame subsystem includes:

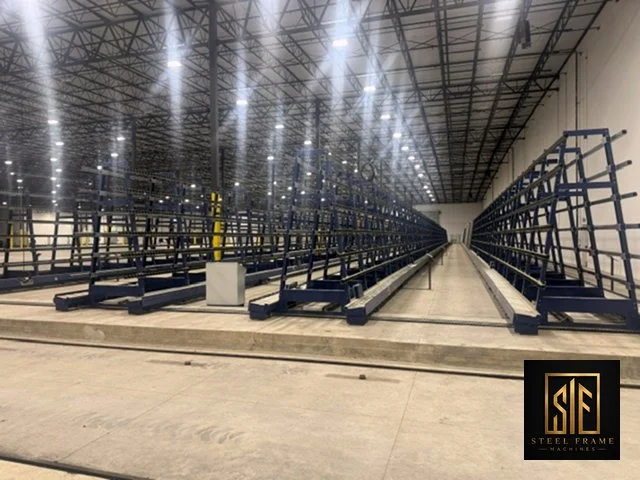

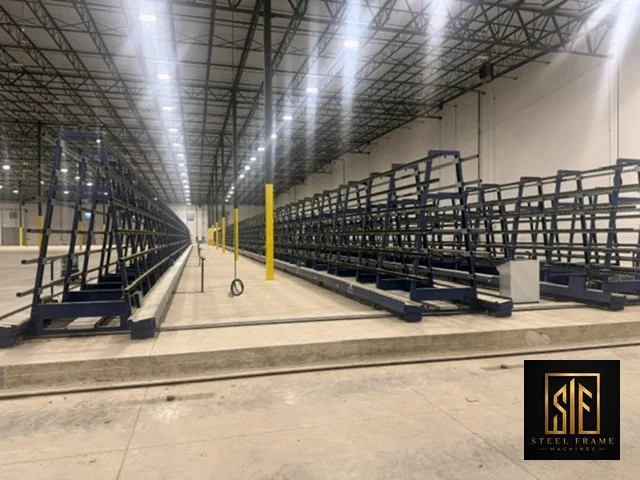

A-frame conveyors in 22' 8", 34' 1", and 40' 8" lengths
A 32' 10" A-frame conveyor
A 20' 4" A-frame conveyor for the cross shifter
An A-frame cross shifter
An A-frame cross shifter with tilt function

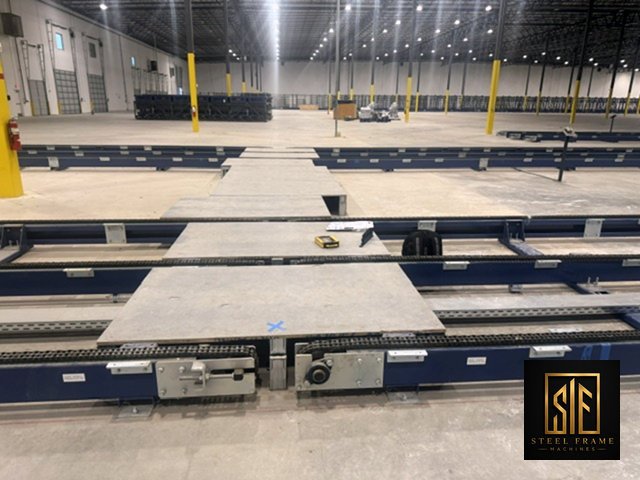

The chain conveyor subsystem includes:

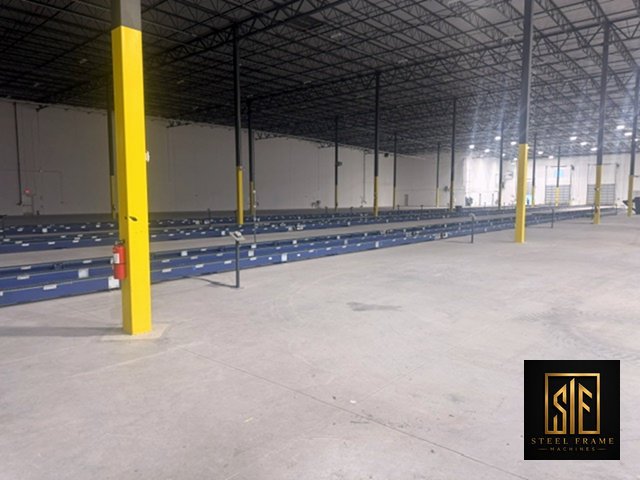

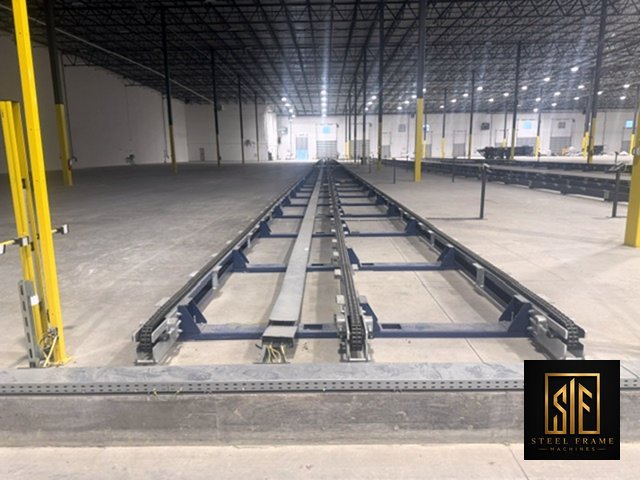

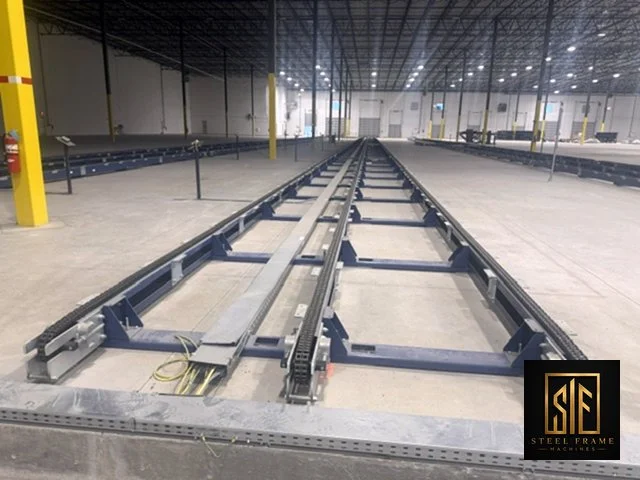

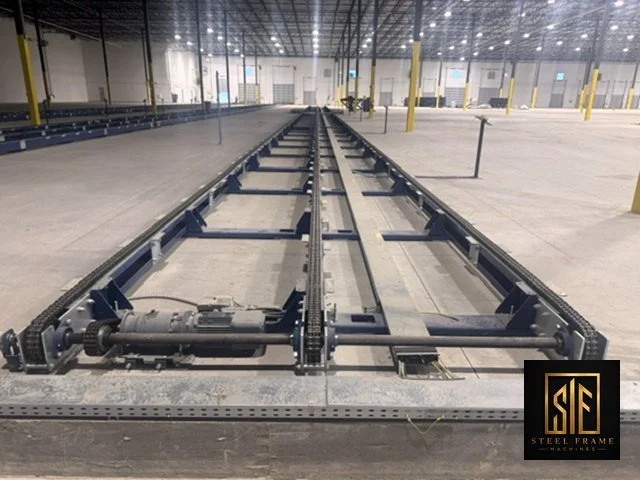

Three-strand chain conveyors in 59' 1", 45' 11", and 26' 3" lengths
A 28' 7" three-strand chain conveyor with Omega tensioning for the cross shifter
A cross shifter for the chain conveyor

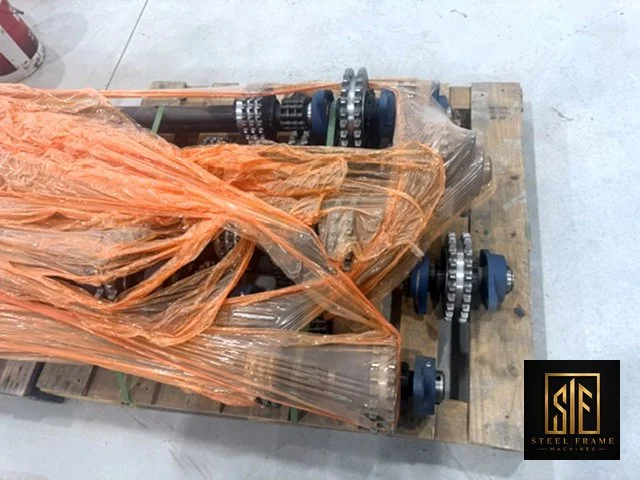

Each subsystem comes with general plant and machine controls, cable material, control cabinets and control points with programming, and one set of spare parts.

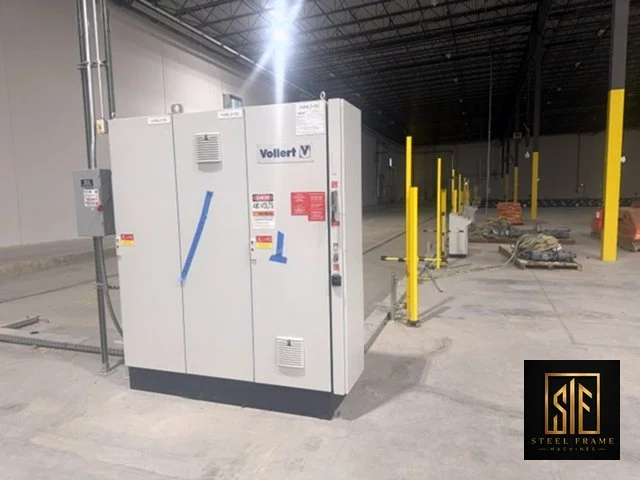

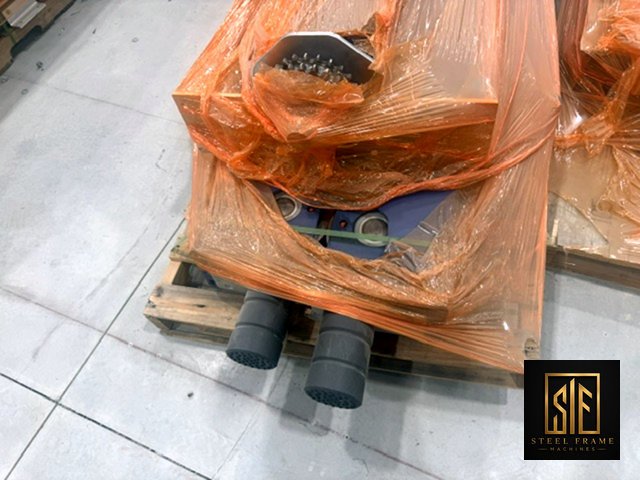

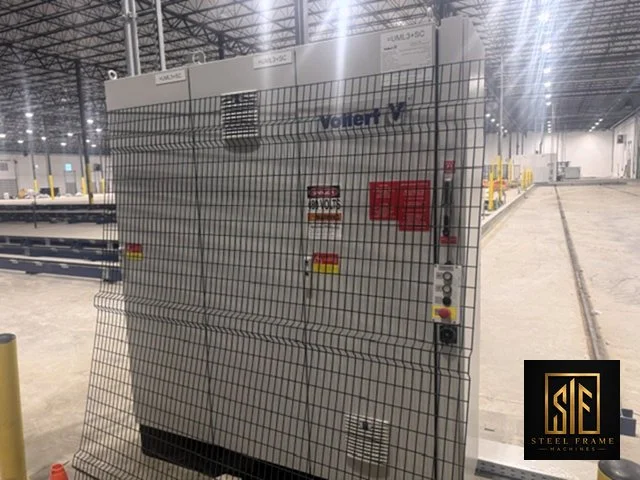

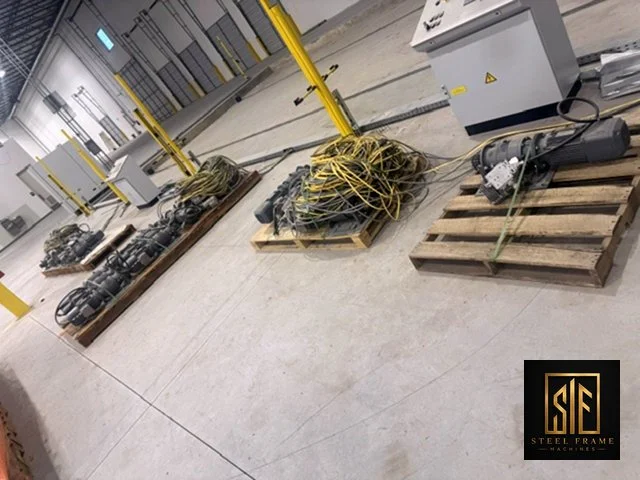

Drives include SEW-Eurodrive inverter-duty gearmotors with brakes. The control cabinets are marked for 480V.
Note: All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer's responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. Steel Frame Machines assumes no liability for discrepancies or omissions.
